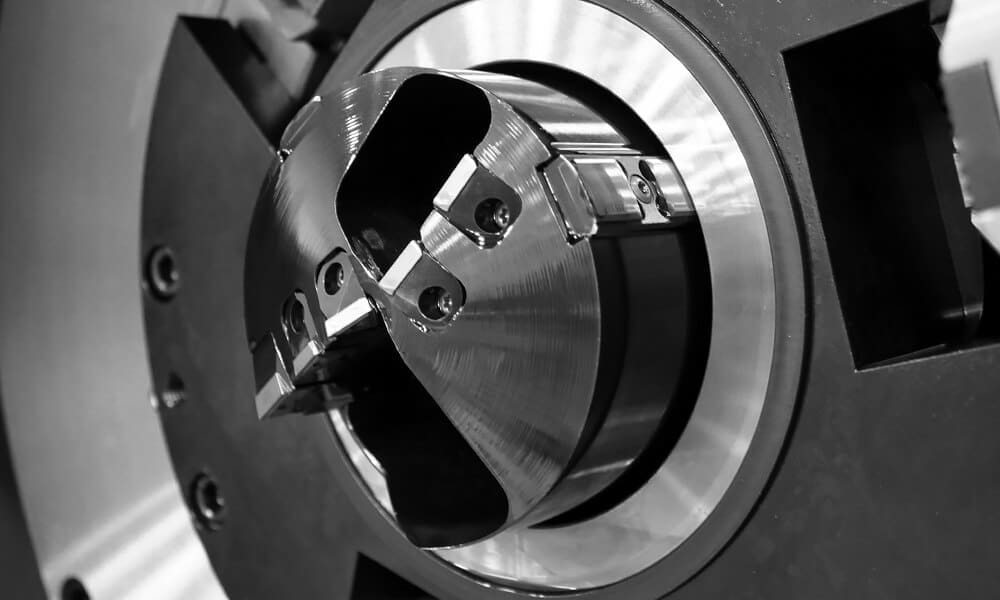

bta tool in machine

Machines with BTA Drilling Capabilities

BTA deep hole drilling is a process that accurately drills holes from 20 – 630 mm [0.80 – 24.0 in] in diameter with higher feed rates. BTA drilling uses external coolant introduction and internal chip removal for precision drilling performance, even at extreme depths-to-diameter ratios.

Find a machine for BTA drilling

gundrilling machining center

UNI machines perform deep hole drilling in production environments. These machines are modularly configured, and often add automation, for the ultimate in efficiency and accuracy.

Designed for:
  • Gundrilling or BTA
  • Hole Diameters up to 50 mm [2.00 in]
  • Round Workpieces
table gundrilling machine

USK series knee-type machines are engineered to handle a variety of workpieces across a range of hole diameters and depths, and offer an array of options to meet tolerance or production goals.

Designed for:
  • Gundrilling or BTA
  • Hole Diameters up to 75 mm [3.00 in]
  • Round or Block Workpieces
bta drilling machine

B-Series ballscrew feed machines use BTA drilling to drill accurate holes up to 300 mm [12.0 in] in diameter, and up to 6,000 mm [20.0 ft] deep.

Designed for:
  • BTA
  • Hole Diameters up to 300 mm [12.0 in]
  • Hole Depths up to 6,000 mm [20.0 ft]
  • Round Workpieces
bta machine

B-Series rack and pinion machines can handle the drilling of longer workpieces without sacrificing accuracy. These machines are capable of hole diameters up to 630 mm [24.8 in], up to 20,000 mm [65.5 ft] deep.

Designed for:
  • BTA
  • Hole Diameters up to 630 mm [25.0 in]
  • Hole Depths up to 20,000 mm [65.5 ft]
  • Round Workpieces
deep hole drilling machine for molds

USC series column-type machines handle larger, heavier workpieces with rigidity and accuracy

Designed for:
  • Gundrilling or BTA
  • Hole Diameters up to 102 mm [4.00 in]
  • Block Workpieces
cnc drilling machine for molds

USC-M series column-type machines combine deep hole drilling and machining in one machine, providing solutions for mold manufacturers.

Designed for:
  • Gundrilling or BTA
  • Hole Diameters up to 50 mm [2.00 in]
  • Block Workpieces
  • Mold Industry Applications

Submit Application

Submit your application for a quote for BTA deep hole drilling machines.
